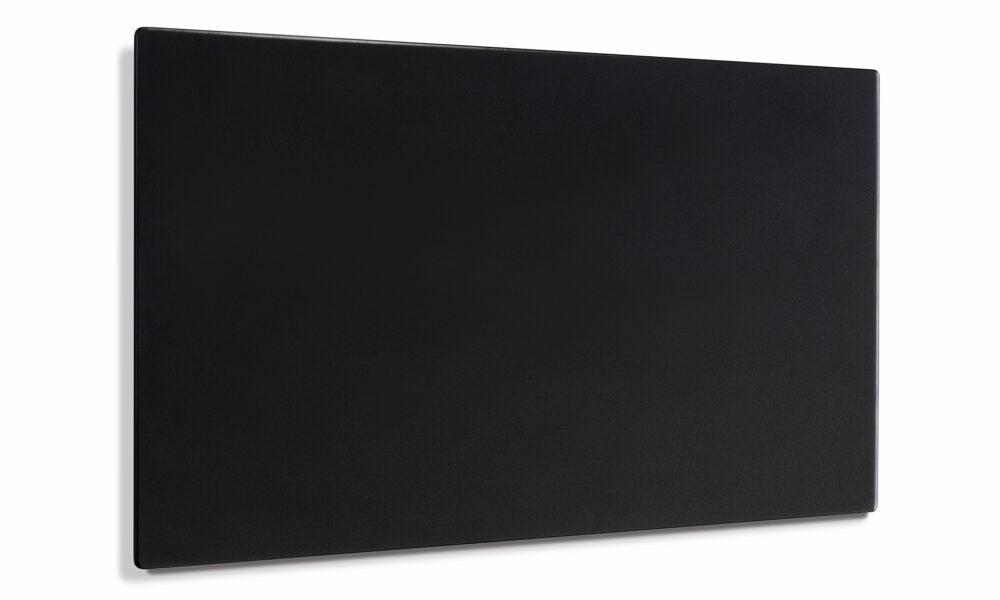

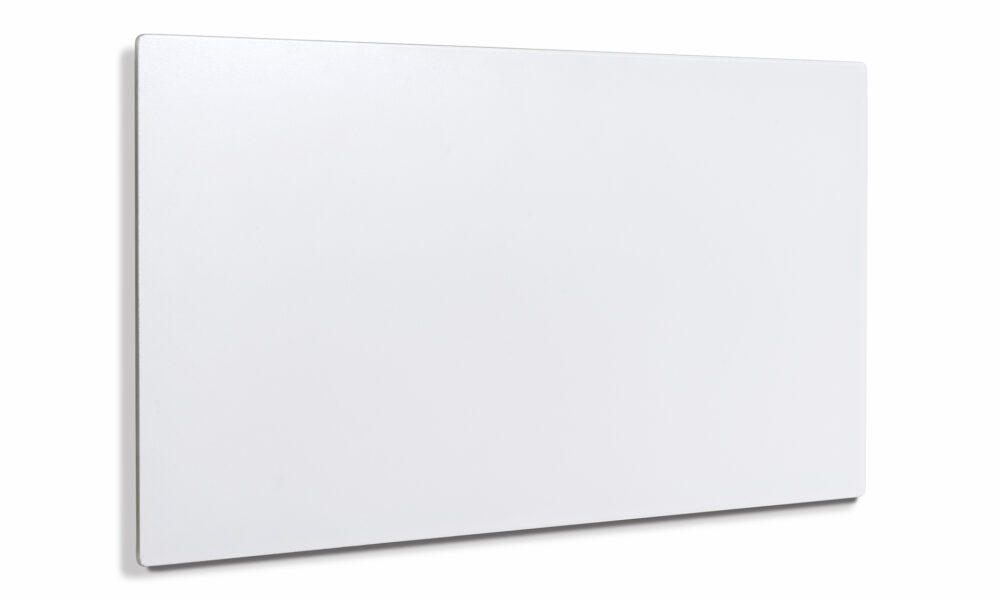

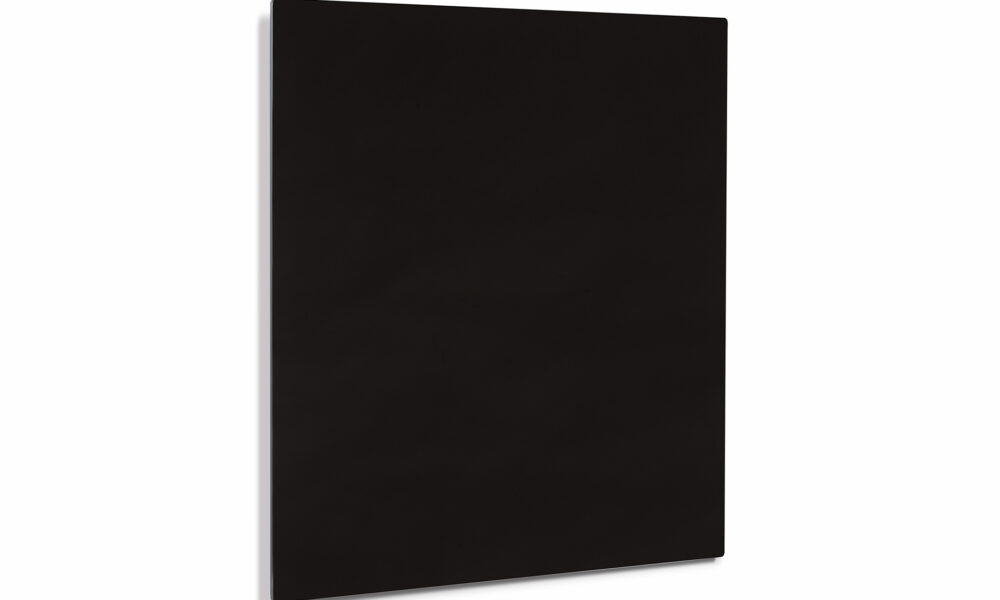

There is power in simplicity, and it is what we have applied to the frameless design of our infrared panels. The heating front is made of 4 mm thick clear ESG safety glass, having bevelled edges and radii on the corners of the glass. The back is made of aluminium sheet metal. The depth of the bare panel is 28 mm, and the total depth with brackets for wall or ceiling mounting is 58 mm.
INFRARED HEATING PANELS ELEGANT (FRAMELESS)

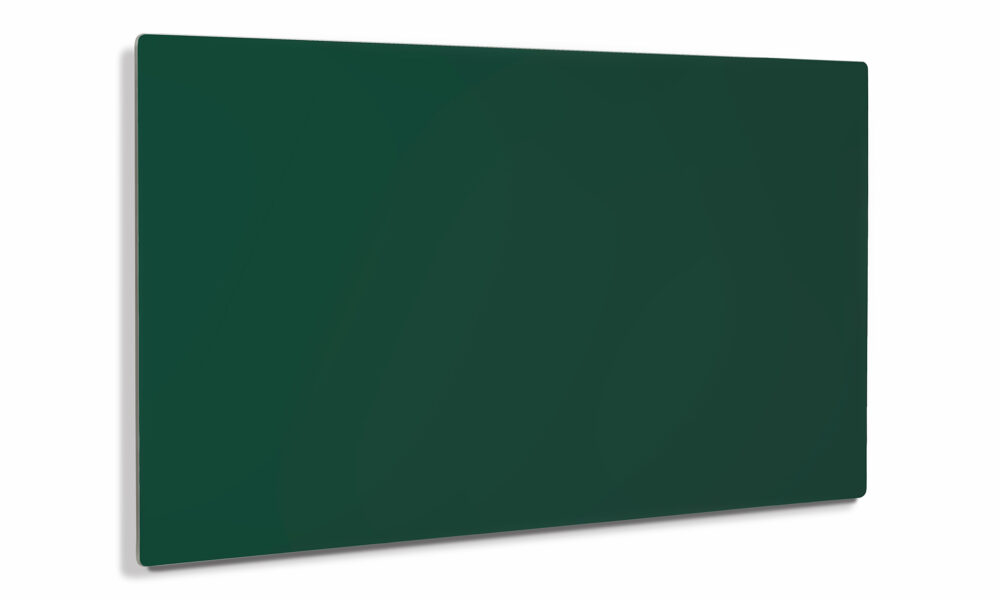

Glass colour options: Basic white/black; it can be ordered with any colour on request (RAL colour chart)

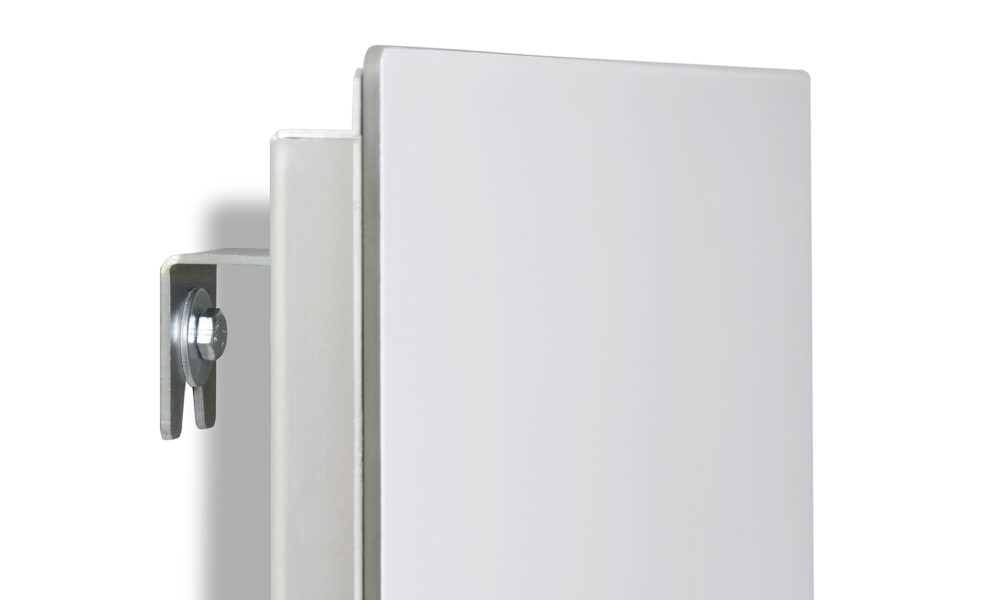

Mounting: For wall and ceiling mounting
Surface temperature: 130 °C for wall mounting, 150 °C for ceiling mounting (higher surface temperature indicates higher thermal efficiency)
Safety fuse: An integral part of each panel
Packaging: Supplied in a cardboard box with a complete assembly kit, instructions and template for precision drilling of holes
Types:
- Infrared heating panels Basic with no temperature control (thermostat)
- Infrared heating panels with Wist NG thermostat on the back of the panel controlled by a wireless thermostat or through a phone with Wi-Fi connection
VARIANTS
1300W 150x60cm

1000W 120x60cm

800W 90x60cm

500W 60x60cm

230W 30x60cm

PACKAGE CONTENTS
